TRAILER OVERVIEW

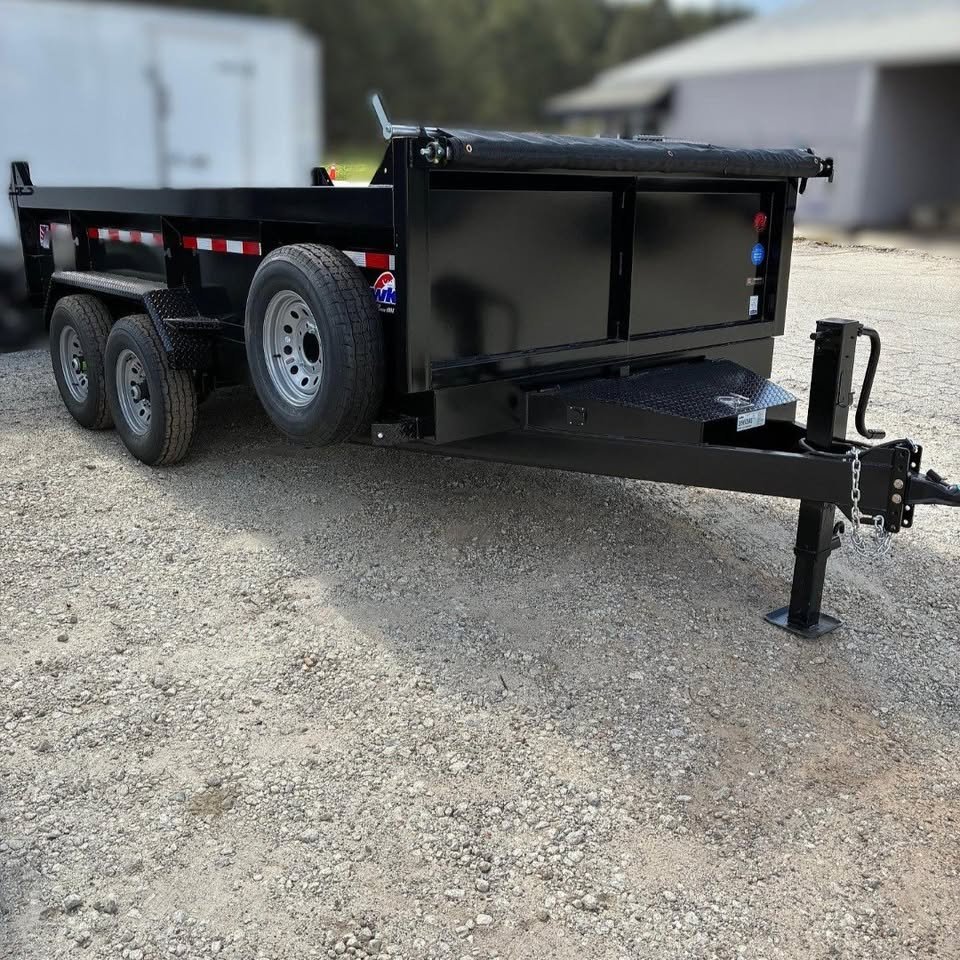

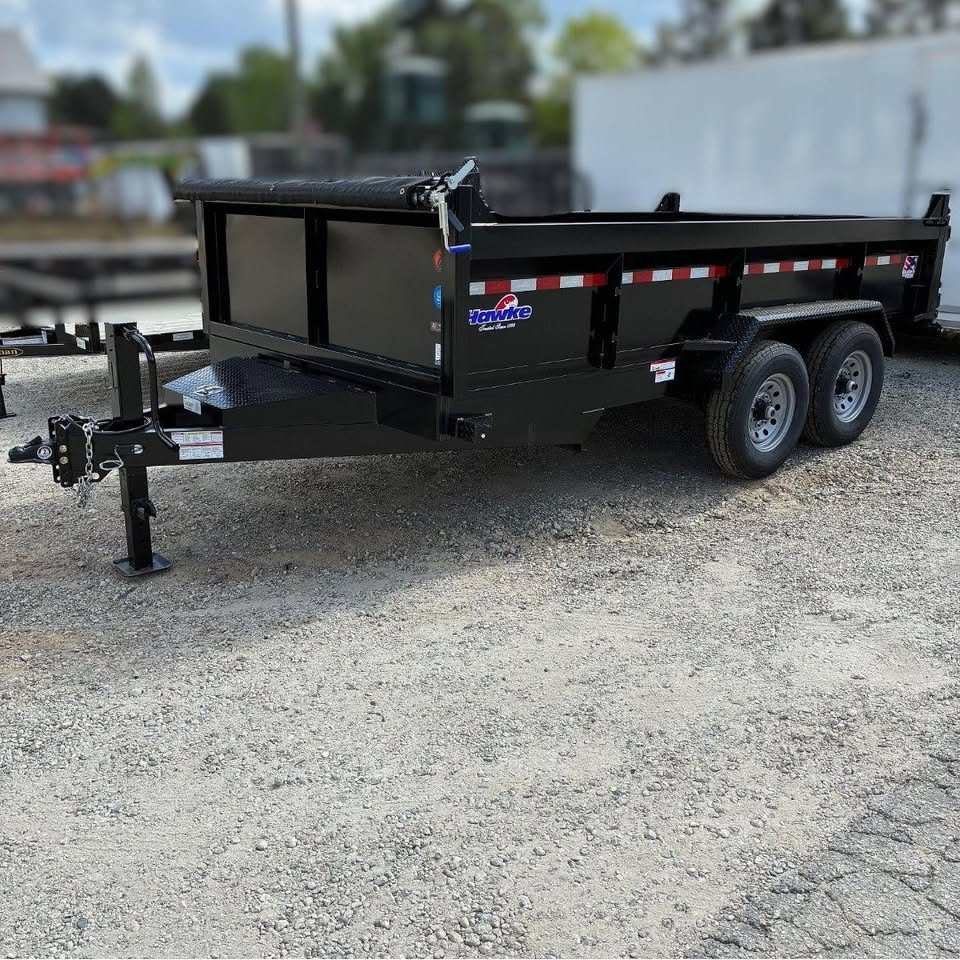

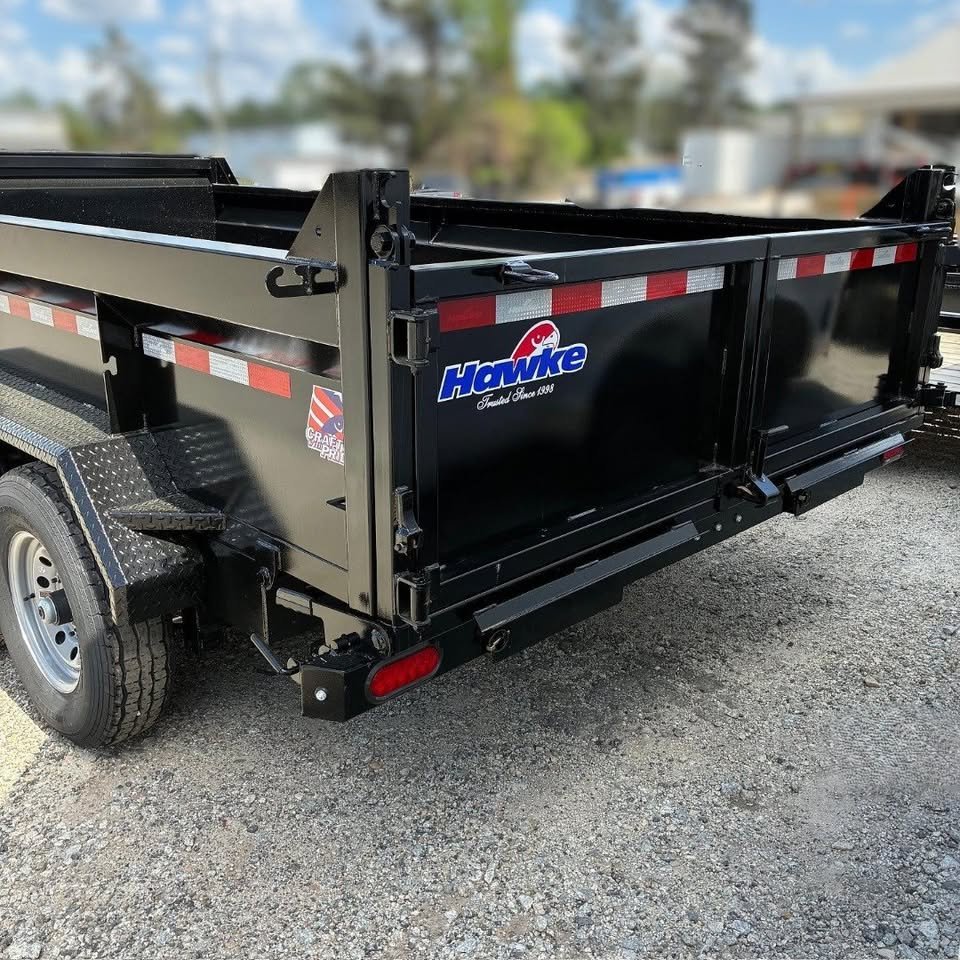

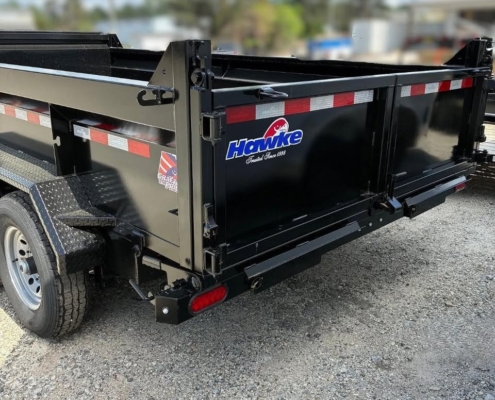

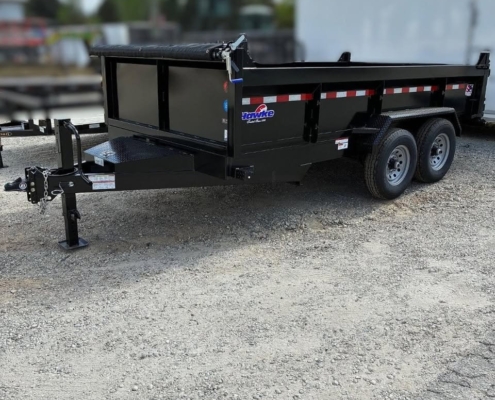

This 14,000-lb. GVWR dump trailer offers a 10,300-lb. payload capacity, 7,000-lb. Dexter braking axles, heavy-duty construction, and a powerful scissor hoist with power-up/power-down hydraulics. With 80″ loading ramps, a two-way spreader-style tailgate, tarp system, lockable toolbox, and adjustable coupler, it’s built to handle serious hauling and jobsite work.
ADDITIONAL SPECS
GVWR: 14,000 lb.
Capacity: 10,300 lb.
Running Gear
- 7,000 lb. Dexter Brand Braking Axles with Slipper Spring Suspension
- 235/80 R16 Load Range E 10 Ply Westlake Radial Tires
Frame/Dimensions
- 8″ Channel Main Frame – 6″ Channel Tongue
- 3×3 Tubing Dump Box Frame
- 3″ Channel Crossmembers on 16″ Centers
- 10 Gauge Floor & 12 Gauge Wall
- 30″ Headboard With 24″ Sides, Raised Rear Corner Post with Lumber Gussets (Allows You to Extend Your Wall Height)
- 83″ Inside Width
Hydraulics
- US Made Pump With 20′ Hand Remote, (Optional Wireless Remote) Deep Cycle Battery
- Scissor Hoist (Power Up Power Down)
Ramps
- 80″ Long – HD 4″ Channel Easy Access Slide-In Loading Ramps. Capacity #12,000
Tailgate
- Two Way Tailgate Opens for Dumping Bulk Materials or Can Be Set in Spreader Mode
Coupler
- 2 5/16″ Adjustable Coupler On 5 Position Track
Jack
- 12,000 Ib. Drop Leg Jack
Electrical/Safety
- Sealed US Made Wiring Harness with LED Lighting
- DOT Approved Safety Chains, Break-a-Way Switch and DOT Tape
Paint
- Phosphate Washed, Primed with Epoxy Primer and Two Coats of Polyurethane Paint
Standard Features
- Lockable Toolbox with Tool Divider
- (4) D-Rings mounted to Wall on Inside of Dump Box
- Tarp System With Aluminum Pull Bar
- Spare Tire Mount
